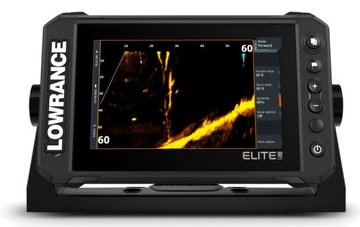

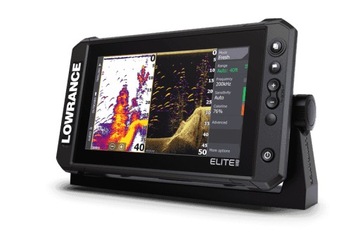

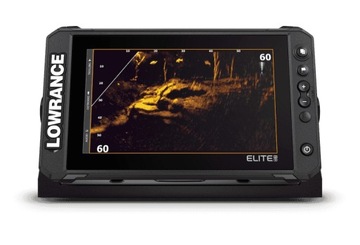

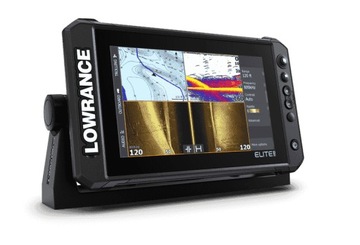

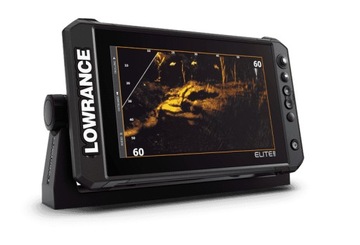

Lowrance Elite 9 FS Active Imaging 3in1 Fishfinder

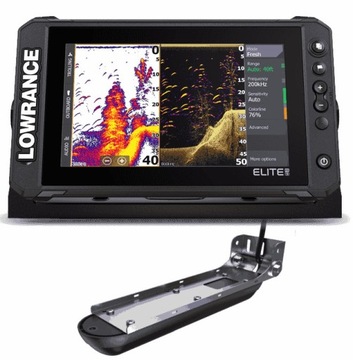

The subject of the offer is the new Elite 9 FS GPS fish finder with Active Imaging 3-in-1 transducer

p / n 000-15693-001

Main features:

• Color multi-touch screen 9 " WVGA 800 x 480 pixels
• screen brightness> 1200 nits
• Polish menu
• classic 83/200 kHz CHIRP imaging
• realistic DownScan ™ 455/800kHz Down Scan
• realistic SideScan 455/800 kHz side scanning
• built-in high-precision GPS : 10 Hz GPS / GLONASS antenna,
• built- in WiFi 802.11b / g / n module - displaying the sonar image on a phone or tablet
• built- in Bluetooth 4.0 module
• ActiveTarget Live sonar transducer support

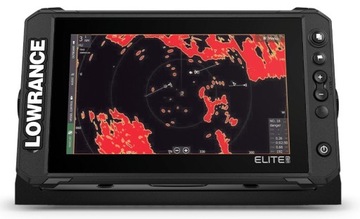

• radar support
• Ghost® Trolling Motor electric bow motor control
• Xi3 / Xi5 electric bow motor control with Lowrance SmartSteer ™
• maximum range: Chirp 83 / 200kHz 305 m, DownScan ™ 455/800 kHz 91 m in fresh water
• the ability to create bathymetric maps on the fly while swimming C-MAP® Genesis Live
• Compatible maps: C-MAP, Navionics, Maximapa
• FishReveal ™ application of fishbows to DownScan ™ imaging
• programmable hotkey
• water temperature measurement
• measurement of the voltage of the power source

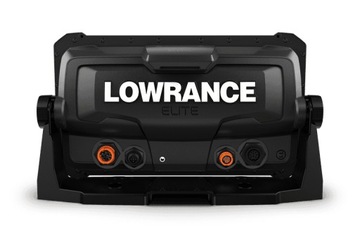

• NMEA2000 communication
• 1 Ethernet port
• micro SD memory card slot up to 32 GB
• working temperature: -15 ° C to + 55 ° C
• supply voltage: 10 - 17 V DC
• maximum power consumption 28 W (2 A at 13.8 V DC)
• waterproof housing , IPX 7 class

By purchasing this product you get:

• sonar screen
• screen protector
• tilting stand

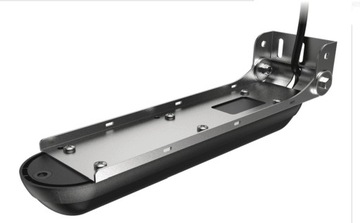

• Active Imaging 3-in-1 transducer
• mounting the transducer
• power cable with fuse
• manual in Polish
• 2-year warranty

The Elite Fishing System (FS) combines the power of Lowrance's proven and latest fishfinding tools with a more affordable display that is easier to use and install. From ActiveTarget ™ Live and extreme high definition Active Imaging ™ sonar with Lowrance CHIRP, SideScan and DownScan Imaging ™ sonar to preloaded C-MAP® Contour ™ + fishing charts, Elite FS gives you all the tools you need to find and catch more fish .

Find more fish with proven Lowrance sonar

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology thanks to Active Imaging ™ 3-in-1 sonar with CHIRP, SideScan and DownScan with FishReveal ™. Get the best of CHIRP and DownScan Imaging ™ sonar on one screen with FishReveal, Lowrance's exclusive solution that helps you easily recognize fish from structure and coverage on highly detailed DownScan images.

Track fish live with optional ActiveTarget ™ Live Sonar

Watch high-definition images of fish movements - by tracking them as they swim near and around hideouts with ActiveTarget Live Sonar. You will see the fish are near the obstacles and you will be able to observe how they react to your bait. You will know if your current technique is working or it is time to change the bait or the way it is led.

Follow the fish and presentations with high-definition views in front of or below the boat, or use Scout mode to see an ultra-wide top view of benthic structures and fish activity in front of the boat, ideal for finding large fish and shoals of general fish.

This converter can be purchased separately at my other auctions.

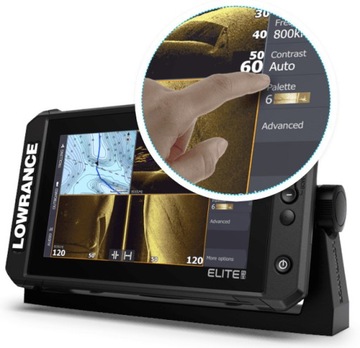

HIGH RESOLUTION MULTI-TOUCH SCREEN

The best screen in our Elite series, the multi-touch, flat glass screen with anti-reflective coating ensures perfect visibility in any light. A single user programmable key allows you to quickly select the most important and frequently used interactions.

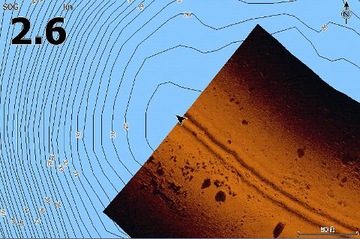

StructureMap function

The Elite FS series uses a very fast processor. It allows you to use the amazing StructureMap function, which allows you to apply the image from the Active Imaging 3in1 sensor to the fishery map. In this way, we create our own map of bottom structures, fish places and the shape of the bottom. Thanks to this, after crossing the area of interest to us, we have a full picture of what is under the water and we can easily navigate to interesting places. In this series of devices, we can save views from all sensors on a memory card and then conveniently view them on the fishfinder screen or computer. We can also convert them in an echo sounder and create a "StructureMap" from them that can be displayed together with the GPS map.

Find key fisheries with Contour +

Spend more time catching fish and less time finding them with optional high-resolution, detailed C-MAP® Contour + inland and coastal maps. From finding key fisheries such as rock ledges, dips and ditches to precision navigation to fish areas, you'll be more successful in the water thanks to high-resolution 1-foot bathymetric contours.

Or you can just turn on Genesis Live for real-time mapping.
